A sputtered thin film pressure transducer measures pressure with ultra-thin film layers, offering high accuracy and reliability. This technology is vital for precise applications. In this article, we delve into its benefits, features, and uses.

Key Takeaways

Sputtered thin film pressure transducers offer exceptional accuracy, long-term stability, and durability, making them suitable for precision applications in harsh environments.
Their compact design, high frequency response, and customization options enhance versatility, allowing for effective integration into various industrial and automotive systems.
Despite high manufacturing costs and challenges in bonding quality, the demand for these transducers is projected to grow, driven by advancements in technology and the need for reliable pressure measurement solutions.

Sputtered thin-film pressure transducer for monitoring hydraulic pressure in construction vehicles, such as milling machines and crushers.

Understanding Sputtered Thin Film Pressure Transducers

Sputtered thin film pressure transducer utilizes ultra-thin layers on diaphragms to measure variations in pressure with remarkable precision. This technology involves depositing thin film resistors on a metal substrate, creating a highly sensitive pressure sensing element.

Precision control over film thickness and properties enhances sensor performance, offering high sensitivity and accurate detection of small pressure changes.

Sputtering device used to deposit ultra-thin resistive layers onto metal diaphragms for pressure transducers. The machine precisely controls film thickness and properties, enabling high-sensitivity pressure sensors.

High Accuracy and Long-Term Stability

One of the standout features of sputtered thin film pressure transducers is their high accuracy and long-term stability. These transducers deliver consistent performance due to their precisely engineered film layers, offering superior accuracy over thick film transducers. Their design ensures exceptional stability and low power usage, providing reliable and precise measurements even in extreme conditions.

Such attributes make them preferable in precision applications where high accuracy and minimal high temperature drift are crucial.

Durability in Harsh Environments

Sputtered thin film pressure sensors are built to withstand harsh environments, including severe vibrations, shocks, corrosion conditions, and even liquid exposure. These sensors are designed to protect reliable performance in extreme conditions, making them suitable for demanding industrial environments. The thin film pressure sensor technology enhances the durability and accuracy of these devices.

Their robustness ensures accurate pressure measurements in high-pressure applications, protecting against environmental stressors and ensuring long-term stability and reliability.

Durable sputtered thin film pressure sensor designed for harsh environments, featuring ultra-thin resistive layers on a metal diaphragm for precise pressure measurement and high reliability under extreme conditions.

Wide Temperature Range Capabilities

Sputtered thin film pressure transducers operate across a wide temperature range from -40°C to 125°C, exhibiting minimal temperature drift, which contributes to their high accuracy. This capability ensures consistent performance in varying conditions, making these transducers ideal for applications needing precise pressure measurements across different temperature ranges.

Sputtered thin film pressure sensor engineered for wide temperature range operation, featuring ultra-thin resistive layers on a metal diaphragm to ensure accurate and reliable pressure measurement across extreme temperatures.

Key Features of Sputtered Thin Film Technology

Sputtered thin film technology combines thin film and semiconductor technology to enhance performance across various applications. These transducers utilize thin layers of sputtered film deposited on diaphragms to detect pressure variations accurately, offering high accuracy and reliability even in demanding conditions.

Key features include high frequency response, compact design, and customization options, making these transducers versatile and adaptable for different industrial needs.

Sputtered thin film technology deposits ultra-thin material layers onto substrates, forming precise resistive or conductive films. Used in pressure sensors, these films change electrical properties when the diaphragm flexes, enabling accurate measurements. The process offers high precision, durability, and performance in extreme temperatures, vibrations, and corrosive environments.

High Frequency Response

Sputtered thin film pressure transducers achieve fast response times due to the direct pressure application on their stainless steel cores, eliminating the need for isolation diaphragms. This high frequency response makes them effective in dynamic pressure measurements, enhancing their performance in applications requiring rapid and precise pressure detection.

Compact and Space-Saving Design

Their compact design makes sputtered thin film pressure transducers suitable for installations in tight spaces. These sensors occupy minimal space, which is particularly beneficial for applications where size is a critical factor.

Developing smaller, more efficient transducers enables their use in a wider range of applications, including compact medical devices and industrial equipment.

Compact sputtered thin film pressure sensor with a space-saving design, featuring ultra-thin layers on a metal diaphragm for precise and reliable pressure measurement in confined or limited-space applications.

Sputtered Thin Film Pressure Transducer Customization Options

Customization allows sputtered thin film pressure transducers to be tailored to meet specific application requirements upon request. Users can modify output configurations, mounting options, and pressure ranges to suit their needs and facilitate change.

For example, the VTM530 Pressure & Temperature Sensor with I2C output can be customized for application-specific mounting, enhancing its adaptability to different installations.

Customizable temperature and pressure sensors designed, prototyped, tested, and produced for precise, reliable performance in any environment.

VORTORQ R&D team works with clients on-site to test and refine sensors, ensuring reliable performance in real conditions.

VORTORQ Sensor Technology, a global sensor manufacturer with decades of experience, specializes in sputtered thin film pressure sensors. Each sensor is engineered through an advanced sputtering process that produces exceptionally stable, accurate, and compact devices. Known for their strength, lightweight design, and low power consumption, these sensors are widely used in aerospace testing where precision and reliability are critical.

Applications of Sputtered Thin Film Pressure Transducers

The versatility and precision of sputtered thin film pressure transducers make them invaluable across various industries. They are used in industrial machinery, automotive systems, and aerospace and defense applications, where accurate pressure measurements are crucial.

The market for these transducers is expected to grow significantly, driven by technological advancements and the increasing demand for precision measurement solutions.

Industrial Machinery and Equipment

In industrial settings, sputtered thin film pressure transducers monitor pressure distribution in machinery, enabling timely issue detection and enhancing operational safety. High accuracy and durability make them ideal for monitoring and controlling pressure in complex industrial processes, ensuring optimal performance and safety in manufacturing environments.

Automotive Systems

Sputtered thin film pressure transducers are critical in automotive systems, assisting in engine management to optimize fuel efficiency and emissions. They provide precise pressure measurements under varying conditions, enhancing engine performance and safety features.

Reliability and accuracy significantly contribute to the overall performance and ensure safety of automotive systems.

Aerospace and Defense

The aerospace and defense sectors rely on these transducers for their ability to perform reliably in extreme conditions. They provide the accuracy and reliability needed for critical applications, such as monitoring fuel systems and ensuring the integrity of aircraft components.

Precision and durability make them essential for mission success and safety in aerospace and defense applications.

Challenges and Considerations in Using Sputtered Thin Film Pressure Transducers

Despite their many advantages, challenges and considerations exist when using sputtered thin film pressure transducers. These challenges include high manufacturing costs, bonding quality, and selecting the right manufacturer.

Addressing these challenges is crucial for ensuring the transducers’ performance and longevity.

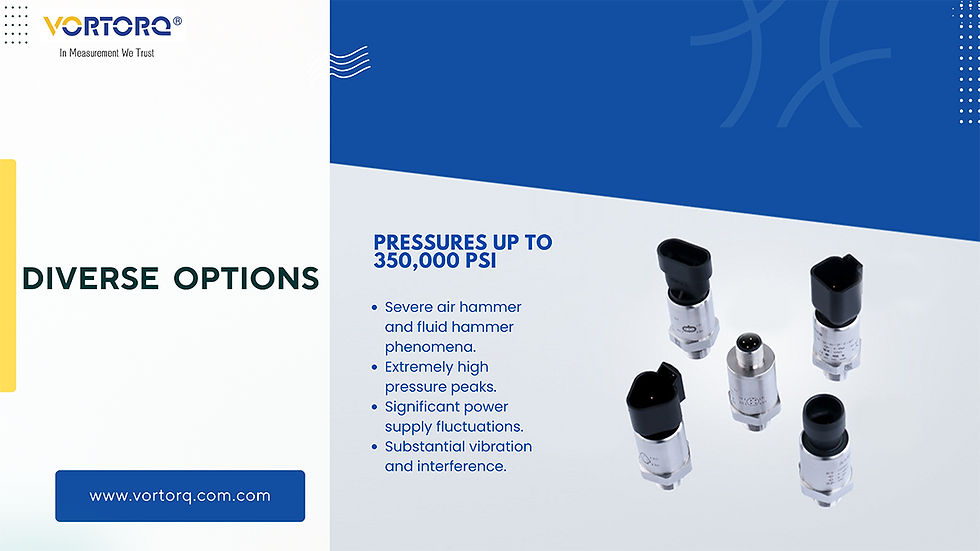

VORTORQ R&D team collaborates with clients to test and refine sensors, ensuring reliability. To reduce costs, a wide range of off-the-shelf sensor variations is also available.

Manufacturing Costs and Equipment

Producing sputtered thin film pressure transducers often involves high manufacturing costs due to the need for advanced sputtering technology and specialized equipment. Clean room environments are required to prevent contamination, adding to the overall complexity and cost of the manufacturing process.

Sputtering Technology and Equipment for Film Pressure Transducers

Bonding Quality and Reliability

Reliability heavily depends on the quality of the bonding between the sensor element and its housing. Poor bonding can lead to sensor failure or inaccurate readings, making high bonding quality crucial for long-term stability and reliability.

Selecting the Right Manufacturer

Selecting a manufacturer experienced in sputtered thin film technology ensures high product quality and reliability. Consider factors such as how to find manufacturing costs, equipment quality, and bonding integrity.

Choosing the right manufactured can lead to stable processes and high-quality products, ultimately enhancing transducer performance and longevity.

Future Trends in Sputtered Thin Film Pressure Transducers

The future looks promising for sputtered thin film pressure transducers, with advancements aimed at enhancing their performance and functionality. Trends include:

Integration with smart systems
Miniaturization
Increased adoption in emerging markets, driven by the demand for more efficient and versatile sensing solutions.

Integration with Smart Systems

Integrating sputtered thin film pressure transducers with IoT and smart systems will enhance their functionality. This integration allows for improved data collection, real-time monitoring, and predictive maintenance, making these transducers crucial for advancing smart systems and automated environments.

Miniaturization and Enhanced Capabilities

Miniaturization and enhanced capabilities reflect the ongoing demand for more efficient and versatile sputtered thin film pressure transducers. Their compact design enables integration into smaller devices without compromising performance. High accuracy and reliability make them suitable for a wider range of applications across industries.

Increased Adoption in Emerging Markets

Emerging markets increasingly recognize the importance of these transducers in sectors like renewable energy and advanced manufacturing. The need for precise measurement solutions is driving their adoption, with rising investments in these sectors accelerating demand.

Accuracy, reliability, and versatility make these transducers ideal for various applications in emerging markets, ensuring efficient and precise operations.

Summary

Sputtered thin film pressure transducers offer numerous benefits, including high accuracy, long-term stability, durability in harsh environments, and wide temperature range capabilities. Their key features, such as high frequency response, compact design, and customization options, make them versatile across various industries. Despite challenges like high manufacturing costs and the need for high-quality bonding, their advantages far outweigh the drawbacks. As technology advances, these transducers are poised to integrate with smart systems, become more miniaturized, and see increased adoption in emerging markets. The future is bright for sputtered thin film pressure transducers, promising enhanced performance and broader applications.

Frequently Asked Questions

What are sputtered thin film pressure transducers?

Sputtered thin film pressure transducers are advanced devices that measure pressure variations with high precision by employing ultra-thin layers on diaphragms, ensuring both high accuracy and long-term stability.

How do sputtered thin film pressure transducers perform in harsh environments?

Sputtered thin film pressure transducers excel in harsh environments due to their robustness against severe vibrations, shocks, and corrosive conditions. This durability ensures they remain reliable and effective in challenging industrial applications.

What temperature range do sputtered thin film pressure transducers operate within?

Sputtered thin film pressure transducers typically operate within a temperature range of -40°C to 125°C, ensuring high accuracy and minimal temperature drift.

What are the key features of sputtered thin film technology?

The key features of sputtered thin film technology include high frequency response, a compact design, and customization options, which enhance versatility and performance across various applications.

What are the future trends in sputtered thin film pressure transducers?

Future trends in sputtered thin film pressure transducers will focus on integration with smart systems, miniaturization, and a growing presence in emerging markets, reflecting the demand for efficient and versatile sensing solutions.
